A single centralized system to actuate various valves located in different areas of the system.
Instead of having a central hydraulic unit for each valve, only one was made capable of controlling them all, to optimize the system.
Share
A single centralized system to actuate various valves located in different areas of the system.
Instead of having a central hydraulic unit for each valve, only one was made capable of controlling them all, to optimize the system.
We oversee every project from start to finish—from defining requirements to commissioning—developing tailored solutions that combine efficiency, reliability, and energy savings.
The project development includes emergency shut-off valves (ESD), one for each plant.

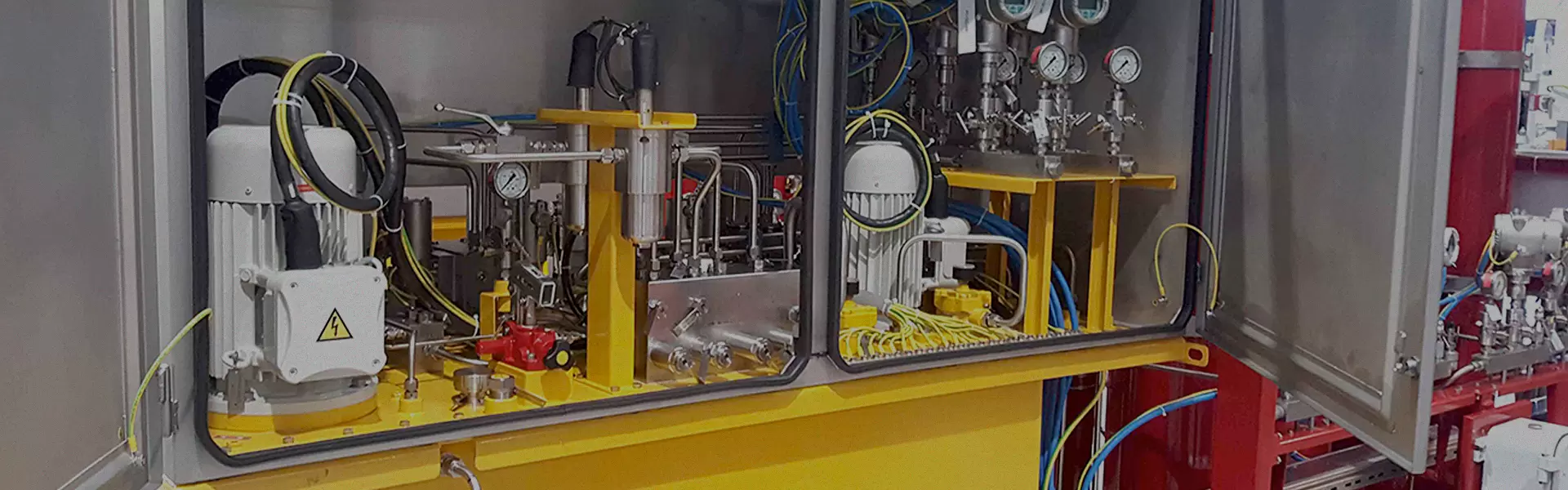

Hydroservice designed, manufactured, and tested, the self-supporting hydraulic power packs for ground installation feeding spring-return glyph actuators (single-acting).
Based on the requirements of the end customer's specifications and technical alignments, the main components, materials of construction, and operating logic were defined.
As a result, the power plant has a tank for collecting all plant oil in painted AISI 316.
A piston accumulator for emergency maneuvering of all actuators, constructed of painted carbon steel in accordance with ASME VIII Div.1 - U stamp and associated back-up N2 cylinders.
All instrumentation, also made of AISI316, and hydraulic equipment were installed inside a purpose-made cabinet with IP65 rating.
The control panel and junction boxes, all in painted AISI316, are installed externally and are sufficient in number to connect digital and analog utilities separately.
The customer has received a product built according to his specifications, tested and ready to use.
In addition, Hydroservice provided field assistance for commissioning.
