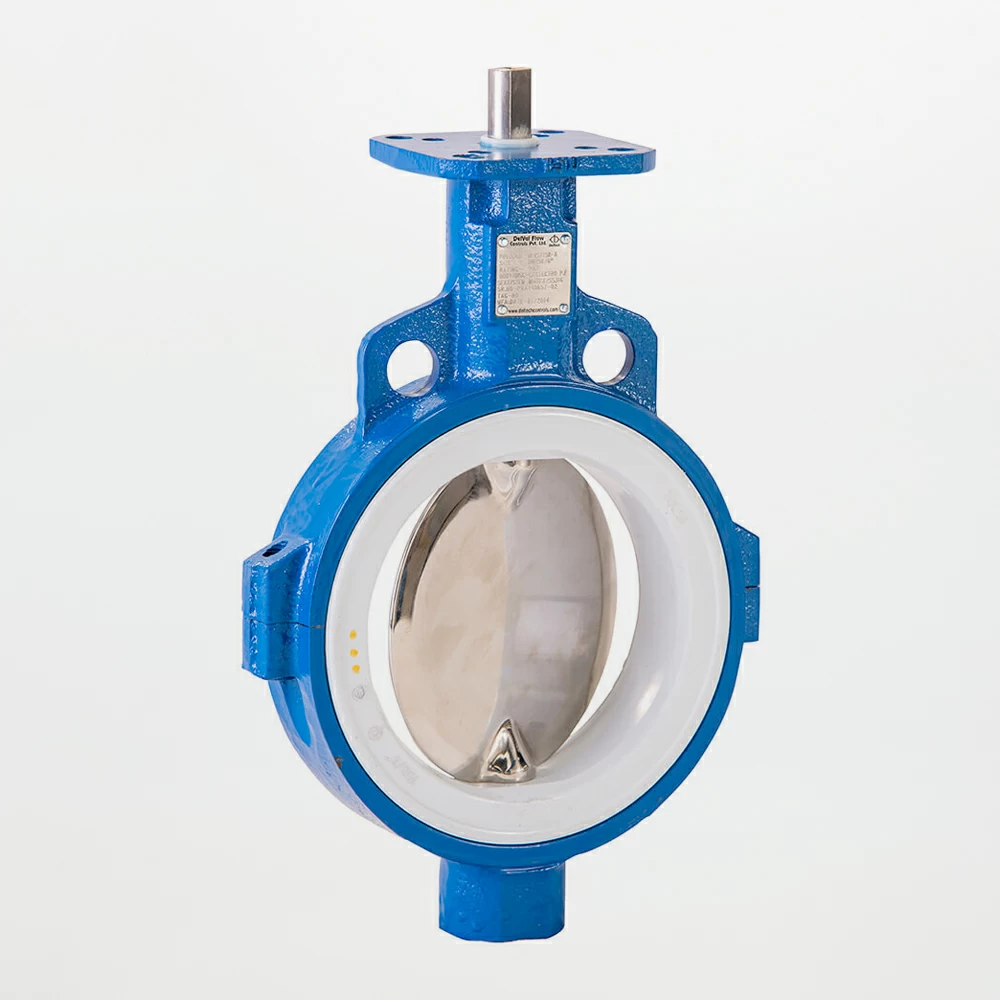

Series 5c/5d split body resilient seated

Features:

  • ISO 5211 top plate for direct mounting of a wide range of actuators, handles, and gears
  • Heavy duty acetal bushing
  • Upper and lower bearings
  • One piece thin profile disc/stem in high strength design
  • Bi-directional U-cup stem seal
  • Heavy duty, two piece epoxy coated body with extended neck and locating holes
  • Center-LOK® peroxide cured seat
  • Double molded O-rings provide upper and lower secondary seals

PARLA CON UN ESPERTO

Contatta uno specialista

Divisione:

Series 5c/5d split body resilient seated

Competenza:

Vendite / Tecnico

Hai bisogno di una soluzione idraulica su misura per la tua applicazione? Parliamone insieme.

go

Dati tecnici

Body Style

Series 5C - Wafer
Series 5D - Lug
Body

CI, DI, CS
Disc/Stem

316 SS
Duplex SS
Elastomer (EPDM, NBR) Lined
Halar® Coated
Seat

EPDM, White EPDM
Buna-N, White Buna-N
FKM, Silicone
Size Range

2" to 24“ (DN 50 to 600)
Pressure Rating

150 PSIG (PN 10)
Design Standard

API 609, BS EN 593
Testing Standard

API 598, BS EN 12266-1
